NanoPix

Intraoral X-Ray Sensor

Professional
Quality
  • 1/10

    Cost per patient compared to film

  • 3s

    To complete entire imaging process

  • 50000+

    Exposures with no quality loss

Leading technologies
The 1st time in dentistry
  • AED Technology (Automatic Exposure Detection)
    -from chest radiography
    • Compatible with almost all DC and AC X-Ray generators
    • Digital images comes automatically when
      your X-Ray is switched on
  • APS CMOS Technology
    -from aerospace industry
    • High signal-to-noise ratio with maximum details
    • Long life and low power consumption
  • Direct Deposition CSI Technology
    -from chest radiography
    • Low dose radiation for safety
    • Low exposure time but high resolution
All-in-one
Economical X-Ray sensor
Unique design
Ergonomic design

Cupped cable connection ensures
comfortable finger positioning

  • Robust cable connection

    70000+ Bendings RA test passed

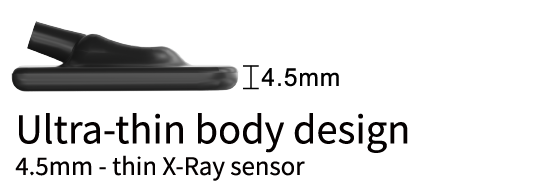

  • Ultra-thin body design

    4.4 mm – thin X-Ray sensor

Specifications(available in 2 sizes):



Size 1

Size 2

Detector Technology

APS CMOS

APS CMOS

Scintillator

CsI

CsI

Pixel Matrix

1000*1500

1300*1800

Theoretical Resolution

25lp/mm

25lp/mm

True Resolution

20lp/mm

20lp/mm

Active Area (mm)

20*30

26*36

Mechanical Size(mm)

25.4*36.8*4.4

30.4*41.9*4.4

AD Conversion(bit)

16

16

Data Interface

USB 2.0

USB 2.0

Protection

IP68

IP68

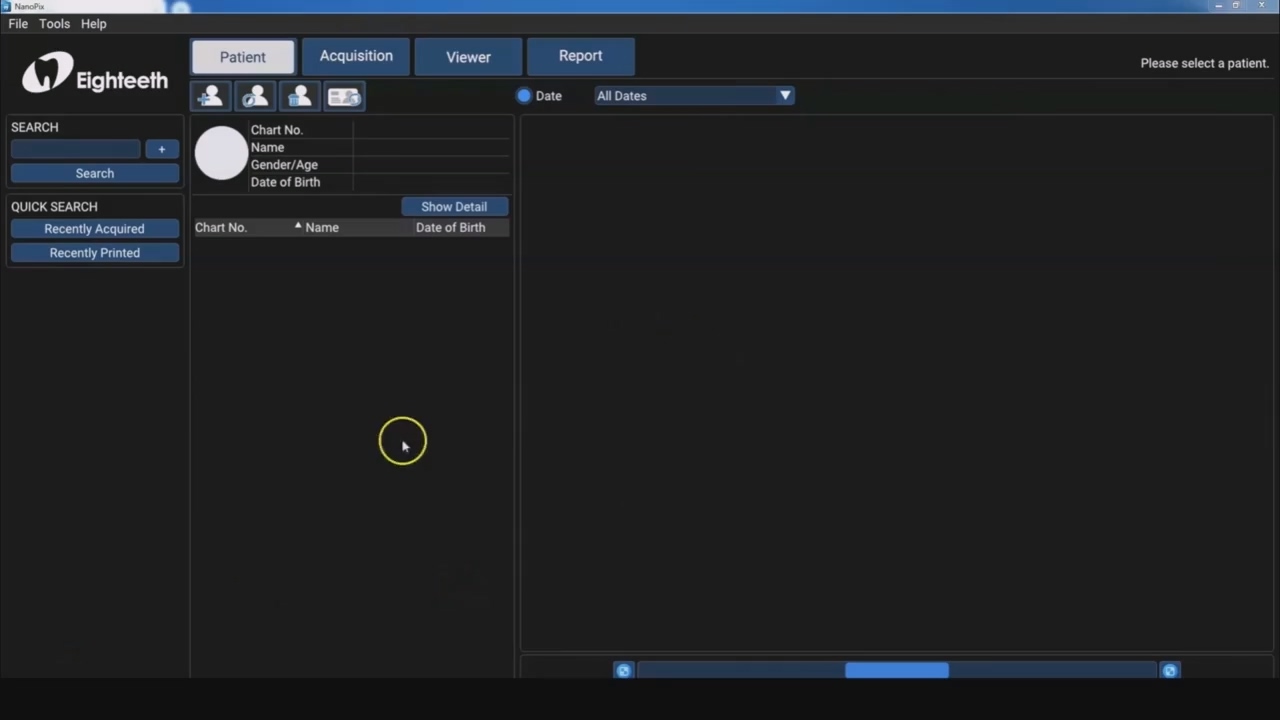

Easy-of-Use software with only 4 steps

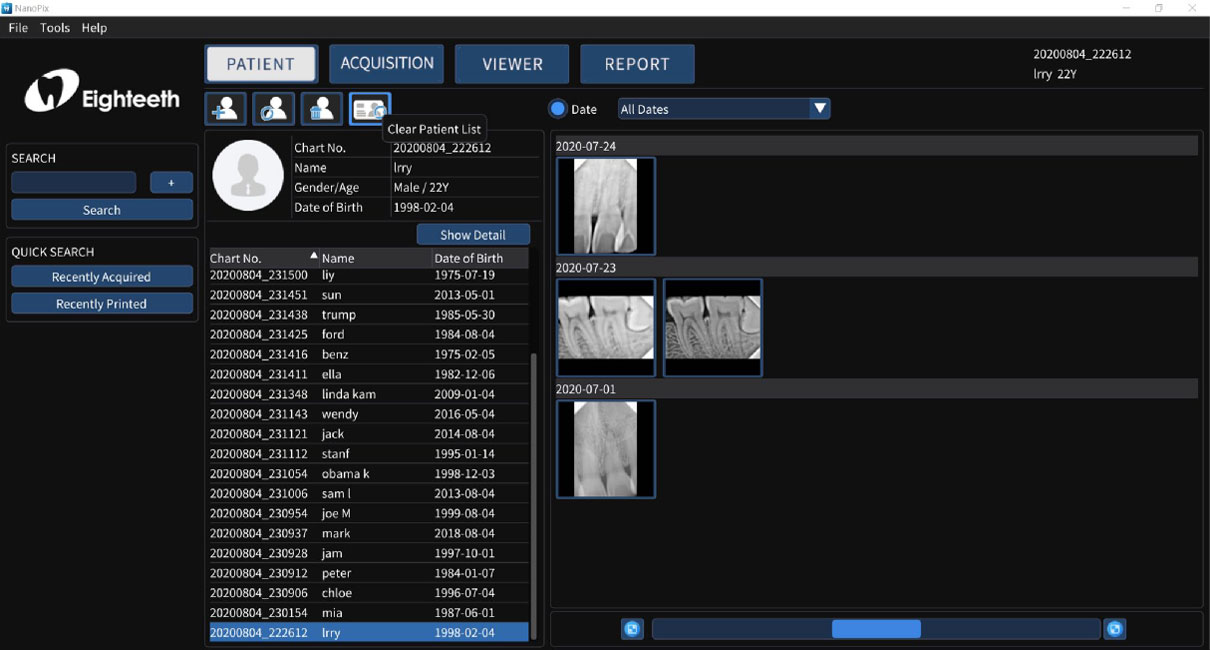

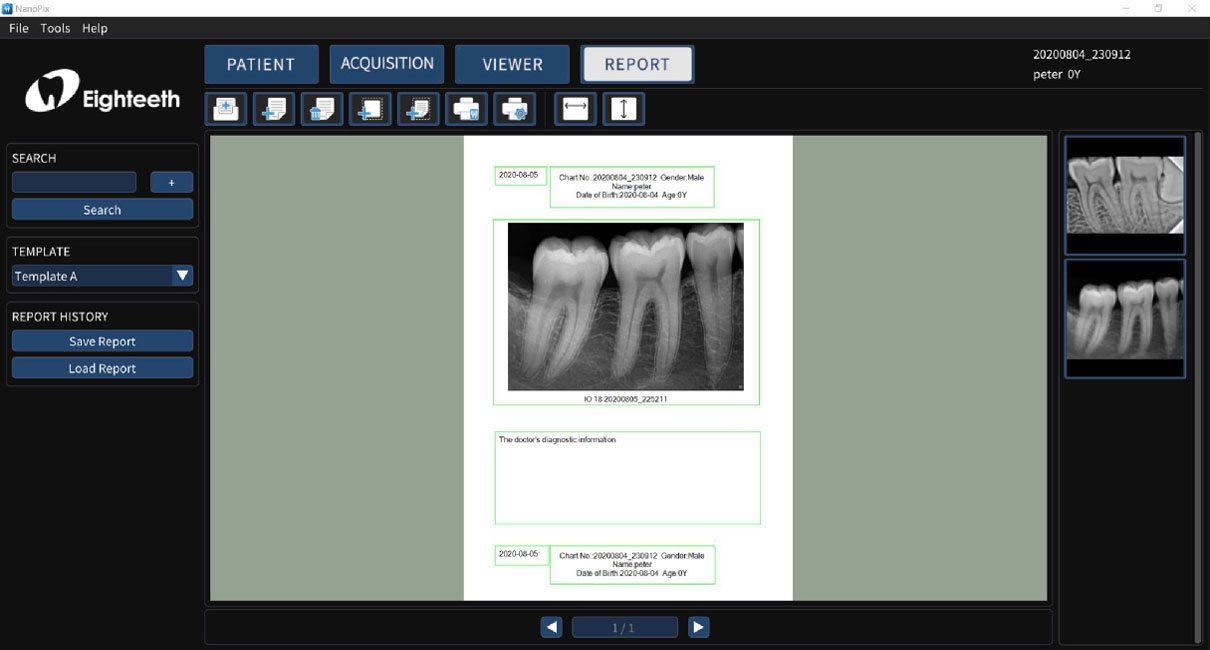

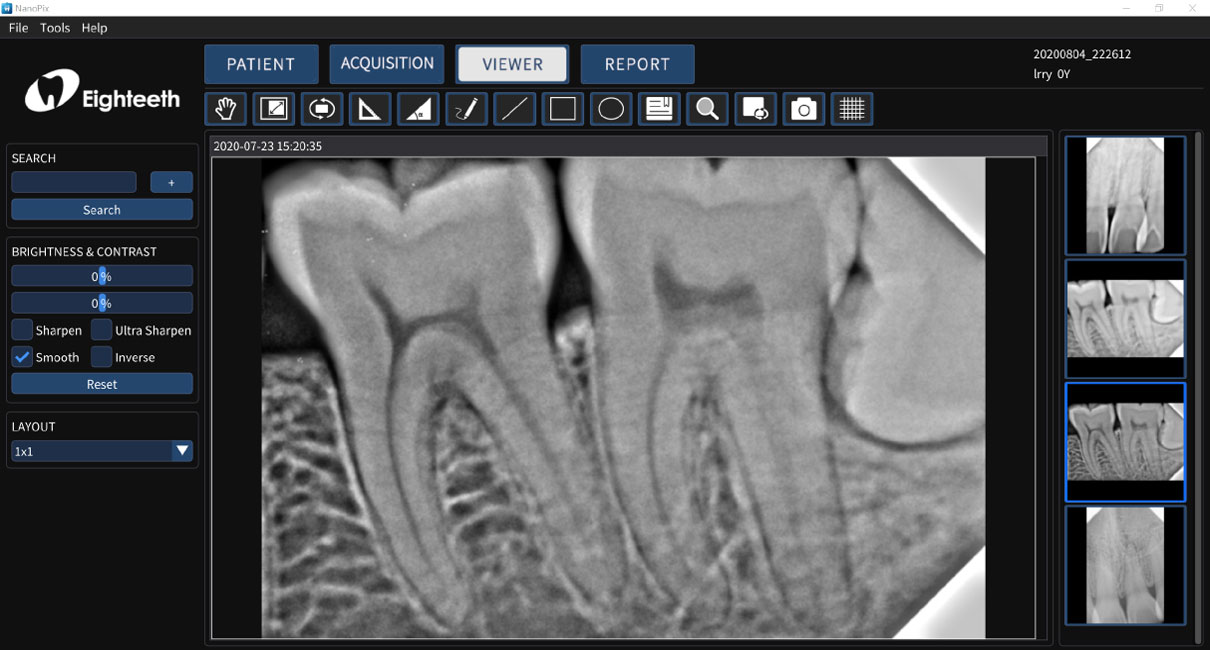

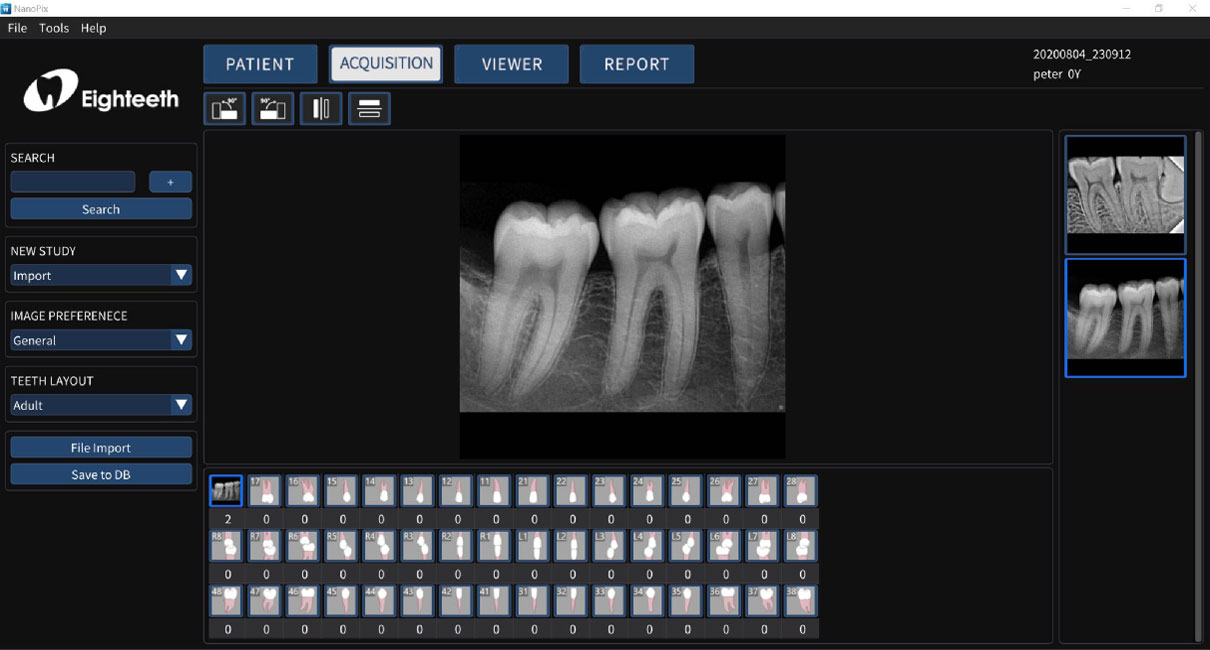

Step 1. Choose 'Patient' Step 2. Image 'Acquisition' Step 3. View Image Step 4. Generate 'Report'



The Complete Image Solution:
excellent combination of DR Pad & its base

pre-installed software
multiple USB ports for diverse needs
build an instant connect with users
